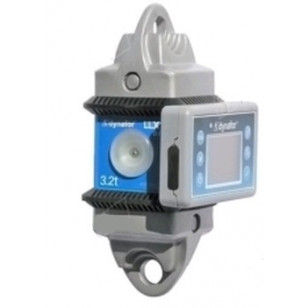

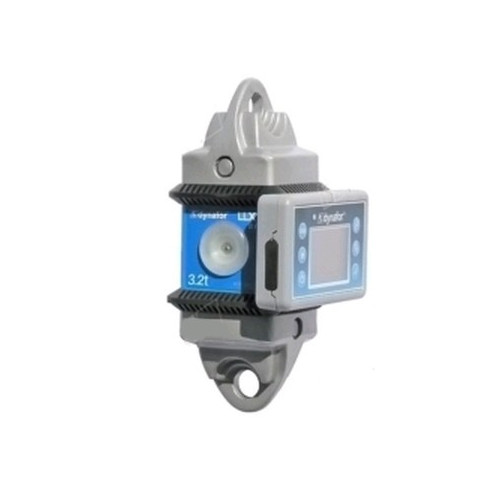

Tractel Dynafor LLX2 digital dynamometer

Digital dynamometer for lifting and pulling application, WLL from 0.5 t to 10 t

Wireless mobile display, up to 80 m of range, provides measures in units of weight or strength
Battery life of 300-1000 hours depending on use
Temperature range from -10°C to +40°C, weatherproof and dustproof (EN 60 529 )
IP 66 protection
Accuracy ± 0.1% of the capacity

 WLL
(t)

Accuracy
(kg)

Min. load increment
(kg)

Test load
(t)

Weight
(kg)

0.5

0.5

0.1

0.75

2.3

1

1

0.2

1.5

2.3

2

2

0.5

3

2.3

3.2

3.2

0.5

4.8

2.3

5

5

1

7.5

3.35

6.3

6.3

1

9.6

3.35

10

10

2

15

6.45

More details

    Standard Lifting accessory in accordance with CE directive N°98/37 and European Standards electromagnetic compatibility N° EN 55 022 & EN 50 082.2
