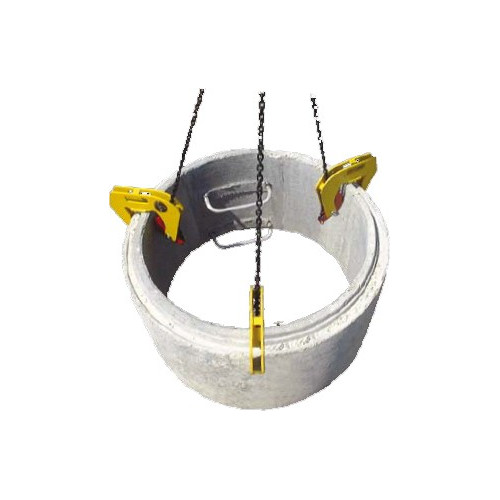

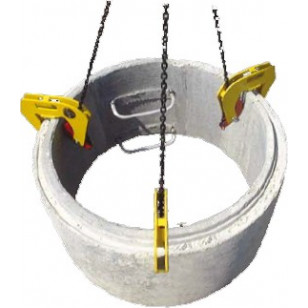

Clamps for the lifting and moving of manholes
Self-locking clamp, no adjustment required
It is recommended to use three clamps for the lifting of round manholes
The clamps must be uniformly distributed around the manhole (120° between two clamps)
Manufactured in welded steel assembly
Code
|
WLL
(kg)
|
Jaws
(mm)
|
Pipe inner diameter
(m)
|
Weight
(kg)
|
|
200 647
|
1500
|
40-120
|
0.4-2.2
|
26
|
|
-
|
3000
|
100-140
|
0.4-2.2
|
45
|
