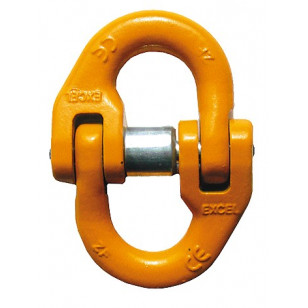

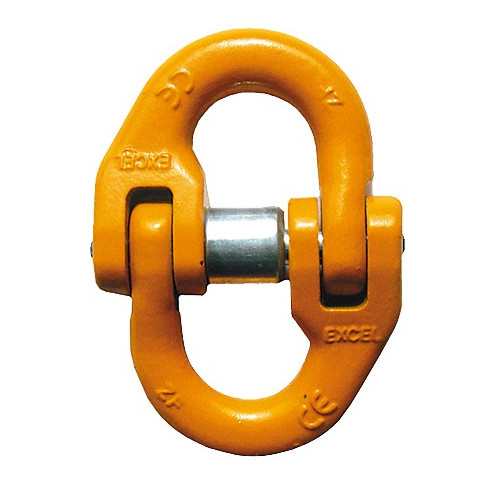

Grade 8 connecting link

Dismountable grade 8 connecting link
This product can be supplied with a works certificate and or a CE Declaration of Conformity

Code

WLL
(t)

Chain diameter
(mm)

Weight
(kg)







105 644

1.12

6

0.14

105 645

2

7-8

0.15

105 646

3.2

10

0.32

105 647

5.4

13

0.7

105 648

8.2

16

1.29

105 649

12.8

18-20

2.08

105 650

15.5

22

3.33

301 172

21.6

26

4.92

302 263

32.8

32

8.2

More details

    Colour Yellow or red
    Material Grade 8 steel
    Safety factor 1:4
    Standard Generally complies with EN-1677-1 standard
