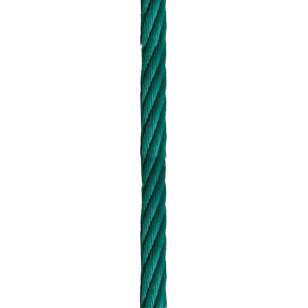

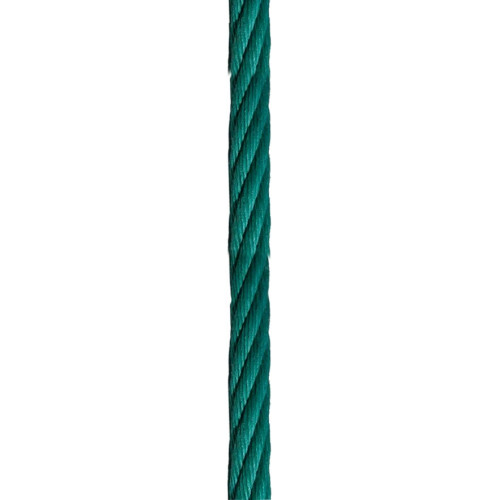

6 strands combination wire rope

6 strands combination wire rope for fishing gears, slings, climbing nets

The ropes are produced by covering each wire rope strand with polypropylene or high strength
copolymer (HSCP) extruded yarns.
The wire rope, of ordinary lay type, can be a 6 strands FC wire rope or a 6 strands IWRC wire rope

Diameter
(mm)

Min. breaking load
(kN)

Weight
(kg/100m)



6 x 19 FC 1960 daN/mm² + polypropylène

12

44,1

22,9

14

53

28,5

16

62,8

34,1

18

70,6

39,4

20

84,3

49,8

22

95,1

58,8

24

110

69,5

26

126

79

28

136

83,6

30

153

90,5

32

183

104

34

228

127

36

272

148

38

303

166



6 x 7 IWRC 1960 daN/mm² + HSCP

12

39,2

20

14

53,9

29

16

71,6

37

18

83,4

43

20

106

55

22

124

64

24

163

83

26

176

93

28

204

110

30

229

125

32

267

138

More details

    Colour Polypropylene : Blue - HSCP : Green
    Material Wire rope with steel or fabric core, steel strands
    Material Protective yarns in polypropylene or high resistance copolymer (HSCP)
    Strands 6 strands
