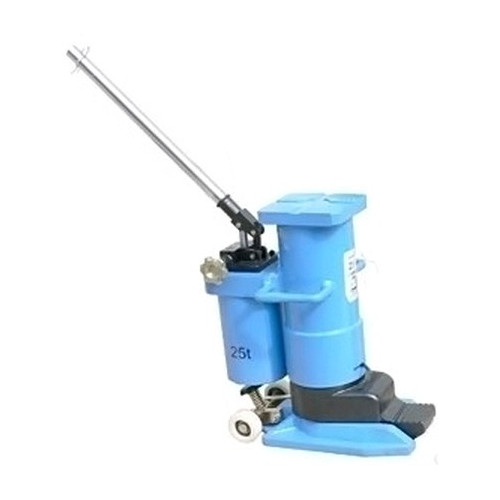

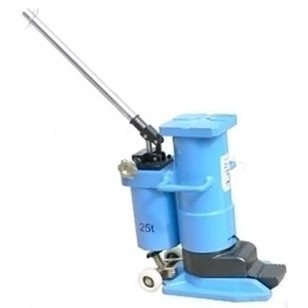

Hydraulic jack for lifting operations
The load can be regardless set on the head or the toe of the jack
Lifting by operation of the lever, lowering movement generated by the pressure relief valve
Screw release valve for easy and controlled lowering
Code
|
WLL
(t)
|
Lift
(mm)
|
Effort on lever
(kg)
|
Weight
(kg)
|
|
101 468
|
5
|
205
|
38
|
25
|
|
101 469
|
10
|
230
|
40
|
35
|
|
-
|
25
|
215
|
40
|
109
|
