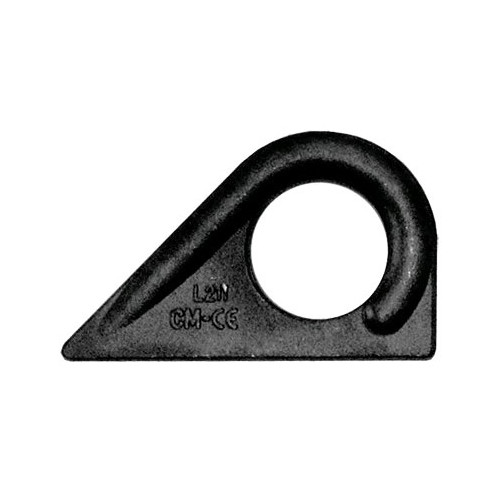

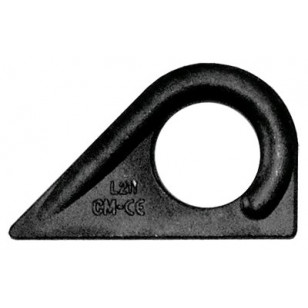

L type weld-on lifting eye

L type weld-on lifting eye

Forged lifting eye
Marking : manufacturer, CE, WLL

Code

WLL

(kg)

Weight

(kg)





307 980

200

0.080

304 809

500

0.160

303 433

1000

0.600

302 345

2000

0.500

306 211

3000

0.800

303 391

4000

1.240

304 106

6000

2.360

More details

Download the pdf data sheet

    Material C22 steel according to NF-EN 10083 1-2&3 standard
    Safety factor 1:5
    Standard Welding must be realised according to the DIN 5817 resp. 15429 standard By a qualified welder according to the EN 287-1 standard
