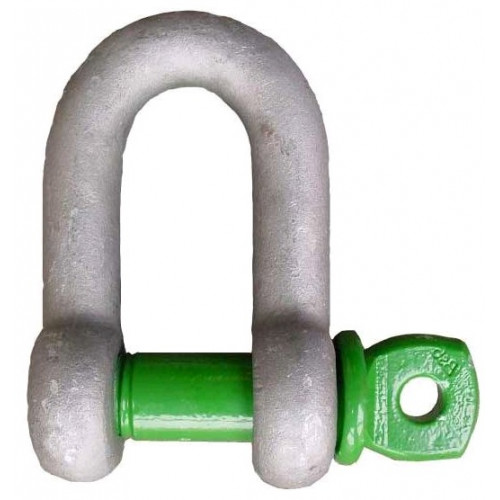

Dee shackle with screw pin

Lifting shackle in high tensile steel, can be supplied with a works certificate, 3.1 material certificate, manufacturer test certificate, EC Declaration of Conformity and all shackles starting from 2 t can be supplied with DNV 2.7-1 certificate

CODE

WLL
(t)

Weight
(kg)





301 466

0.33

0.02

301 467

0.5

0.05

106 924

0.75

0.09

106 925

1

0.14

106 926

1.5

0.19

106 927

2

0.32

106 928

3.25

0.54

106 929

4.75

0.87

106 930

6.5

1.34

106 931

8.5

2.08

106 932

9.5

2.77

106 933

12

3.72

106 934

13.5

5.14

106 935

17

6.85

301 468

25

11.45

301 469

35

16.86

301 470

42.5

24.61

301 471

55

32.65

More details

    Body shape Dee
    Locking Screw pin
    Material Grade 6 high tensile steel, quenched and tempered
    Safety factor 1:6
    Coating Galvanisée
    Standard Complies with EN 13889 standard and US Fed. Spec. RR-C-271 Type IVB Class 3, Grade A standard
    Temperature From -20°C to +200°C
