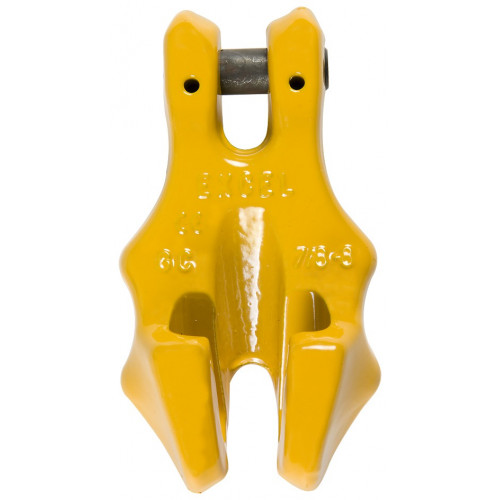

Grade 8 simple shortening clutch

Simple shortening clutch

This product can be supplied with a works certificate, a 3.1 material certificate and/or EC Declaration of Conformity

Simple clutch

Code

WLL
(t)

Chain diam.
(mm)

Weight
(kg)

105 762

1.12

6

0.22

105 777

2

7-8

0.41

105 764

3.2

10

0.82

300 098

5.4

13

1.67

105 766

8.2

16

3.1

105 767

12.8

18-20

4.02

Clutch with locking :

Code

WLL
(t)

Chain diam.
(mm)

Weight
(kg)

308 201

1.12

6

0.22

308 202

2

8

0.41

303 356

3.2

10

0.82

301 507

5.4

13

1.67

301 508

8.2

16

3.1

308 204

12.8

20

4.02

More details

    Material Acier allié, classe 80, trempé et revenu
    Safety factor 1:4
    Standard Complies with EN 1677-1 standard
