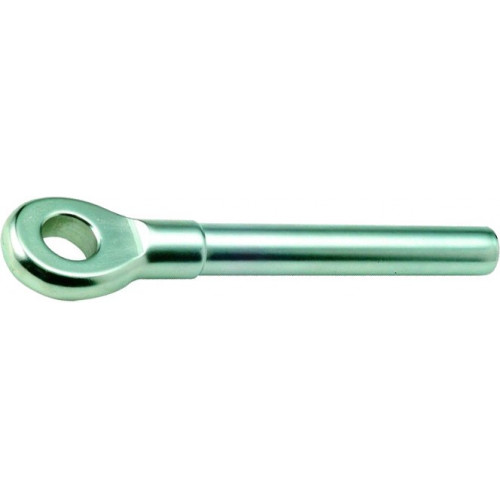

Swage eye

Stainless steel swage eye

Be careful : The dimensions may change according to technical specifications

Code

Diameter
(mm)

Threading
(mm)

Breaking load
(t)

Weight
(kg)

-

2

2,2

0.8

0.009

200 458

3

3,5

1.3

0.013

200 459

4

4,4

2.35

0.023

200 460

5

5,3

4.2

0.039

200 461

6

6,5

5.6

0.087

-

6

6,5

6.2

0.112

200 462

7

7,5

5.6

0.115

-

7

7,5

6.2

0.135

200 463

8

8,4

7.6

0.170

-

8

8,4

9.8

0.235

200 464

10

10,5

9.8

0.250

-

10

10,5

9.8

0.380

-

10

10,5

13

0.380

200 465

12

12,5

13

0.415

-

12

12,5

13

0.410

-

14

14,8

17

0.756

-

16

17

24

1.02

-

19

20

27

2.09

-

22

23,5

31

3.14

-

2.5

2,8

0.8

0.008

-

26

27,5

43

4.25

More details

    Material Stainless steel AISI 316
    Caracteristic(s) Swage terminal
