Threaded stud

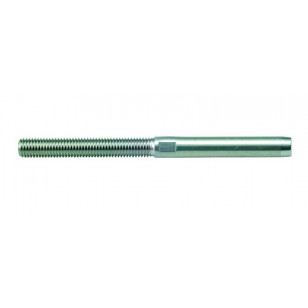

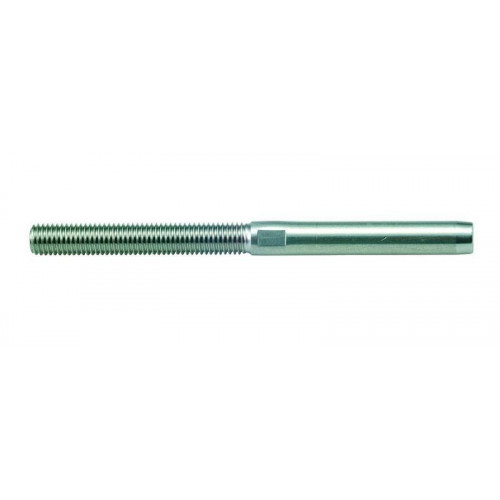

Stainless steel threaded stud for swaging, available with right-handed threading or left-handed threading

Be careful : Threaded stud’s length may change according to technical specifications

Code

Diameter
(mm)

Threading
(mm)

Breaking load
(t)

Weight
(kg)

-

2

5

0.8

0.014

200 495

3

6

1.25

0.020

200 498

4

6

1.25

0.024

200 499

4

8

2.35

0.030

200 501

5

8

2.35

0.040

200 500

5

10

3.5

0.045

200 502

6

10

3.5

0.084

200 503

6

12

5.1

0.11

200 504

7

12

5.1

0.13

200 505

7

14

5.9

0.16

200 506

8

12

5.1

0.19

200 507

8

14

5.9

0.20

200 508

8

16

8

0.23

300 679

10

16

8

0.35

200 493

10

20

13

0.35

200 494

12

20

13

0.45

-

12

20

13

0.50

-

14

22

17

0.77

-

16

22

17

0.98

301 324

16

24

23

1.11

-

19

27

25.5

2.09

-

22

30

31

3.14

-

2,5

5

0.8

0.015

-

26

36

4.3

4.7

More details

    Material Stainless steel AISI 316
    Caracteristic(s) Threaded swage terminal
