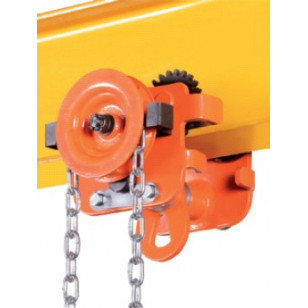

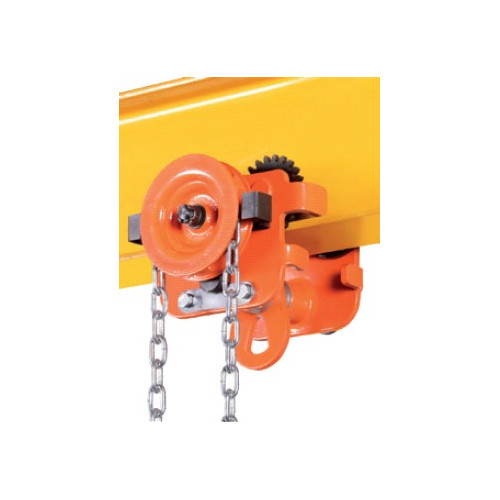

Geared beam trolley can be used for every beam profile
Screw adjustment of the width
Guide roller on maintenance-free ball bearings
Code
|
WLL
(t)
|
flange width
(mm)
|
Min. radius
(mm)
|
Weight
(kg)
|
|
-
|
0,5
|
50-130
|
800
|
8.0
|
|
-
|
1
|
55-135
|
1000
|
12.4
|
|
-
|
2
|
65-150
|
1100
|
18.1
|
|
-
|
3
|
90-155
|
1300
|
30.3
|
|
-
|
5
|
90-175
|
1500
|
46.5
|
|
-
|
0,5
|
130-215
|
800
|
8.0
|
|
-
|
0,5
|
215-300
|
800
|
8.0
|
|
-
|
1
|
140-215
|
1000
|
12.4
|
|
-
|
1
|
215-300
|
1000
|
12.4
|
|
-
|
2
|
150-230
|
1100
|
18.1
|
|
-
|
2
|
230-300
|
1100
|
18.1
|
|
-
|
3
|
160-230
|
1300
|
30.3
|
|
-
|
3
|
230-300
|
1300
|
30.3
|
|
-
|
5
|
180-230
|
1500
|
46.5
|
|
-
|
5
|
230-300
|
1500
|
46.5
|
