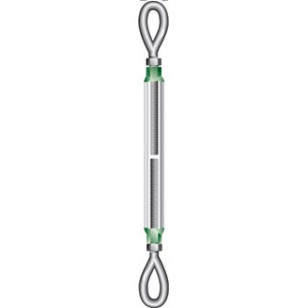

High Tensile eye-eye turnbuckle

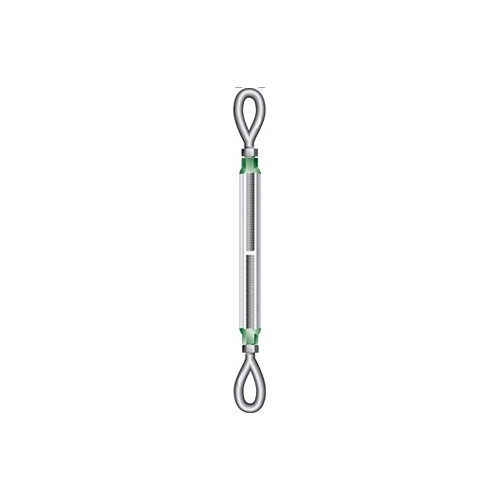

High Tensile eye-eye turnbuckle

WLL
(t)

Diameter
(inch)

Take up
(inch)

Length min / max
(mm)

Weight
(kg)



a



b

c



0.54

3/8

6

292

428

0.47

1

1/2

6

325

455

0.84

1

1/2

9

400

607

1.05

1

1/2

12

476

760

1.26

1.59

5/8

6

381

503

1.35

1.59

5/8

9

455

655

1.60

1.59

5/8

12

531

808

1.92

2.36

3/4

6

414

532

2.03

2.36

3/4

9

488

684

2.49

2.36

3/4

12

564

837

2.65

2.36

3/4

18

717

1142

3.06

3.27

7/8

12

601

869

3.98

3.27

7/8

18

754

1174

5.12

4.54

1

6

497

604

4.35

4.54

1

12

647

909

5.92

4.54

1

18

800

1214

7.17

4.54

1

24

950

1517

7.52

6.9

1 1/4

12

711

984

9.8

6.9

1 1/4

18

861

1286

11.31

6.9

1 1/4

24

1014

1590

12.1

9.71

1 1/2

12

756

1023

14.2

9.71

1 1/2

18

916

1335

16.5

9.71

1 1/2

24

1065

1635

17.1

12.7

1 3/4

18

1019

1396

23.1

12.7

1 3/4

24

1171

1701

26.3

16.8

2

24

1264

1783

40.7

27.2

2 1/2

24

1429

1965

64

34

2 1/2

24

1503

2038

88

More details

    Attachment Eye
    Material Drop forged high tensile steel
    Safety factor 1:5
    Coating Galvanised coating
    Standard Generally complies with ASTM F1145-92 standard
