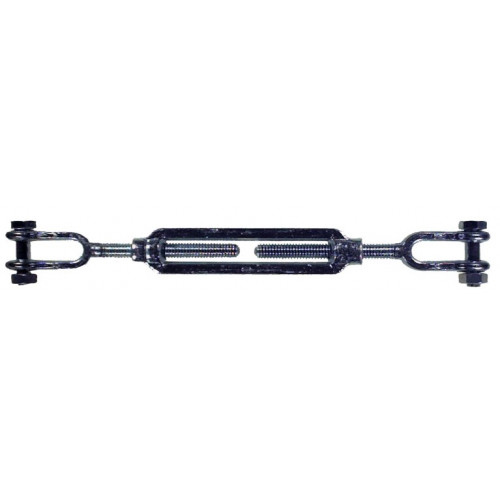

Standard jaw-jaw turnbuckle

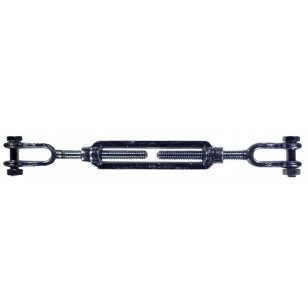

Standard jaw-jaw turnbuckle

Markings  ø, CE

Codes

WLL
(t)

Diameter
(mm)

Length min/max
(mm)

Weight
(kg)





a

b

c



302 218

0,23

6

160

220

0,11

103 511

0,3

8

268

350

0,25

103 512

0,47

10

268

365

0,34

103 513

0,69

12

314

420

0,64

103 514

0,94

14

372

502

1,01

103 515

1,29

16

372

517

1,33

103 516

1,66

18

406

560

1,81

103 517

2,13

20

406

570

2,16

103 518

2,63

22

466

645

3,13

103 519

3,06

24

466

658

3,97

103 520

4

27

550

746

6,79

-

4,86

30

620

816

10,16

More details

    Attachment Clevis
    Material Mild steel body and jaw ends
    Safety factor 1:4
    Coating Galvanised or self coloured finish
    Standard Complies with DIN 1480 standard
