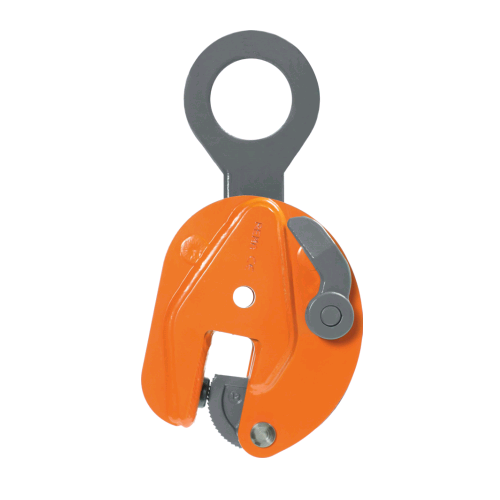

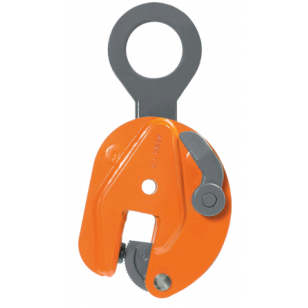

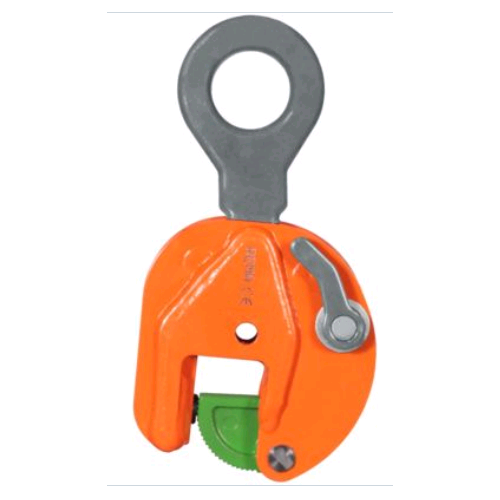

Fixed-eye clamp for plates

Clamps for the vertical lifting and moving of plates

Lock open, lock closed ability with a latch for pretension on plate

Code

WLL
(t)

Jaws
(mm)

Weight
(kg)



a



301 180

0.5

0 - 16

1.9

200 639

1

0 - 20

2.4

200 640

2

0 - 35

8.5



3

0 - 40

14.8

300 439

4.5

0 - 40

16.0



6

0 - 50

24.0



6

50 - 100

30.5



9

0 - 50

29.5



9

50 - 100

30.5



12

0 - 54

57.0



12

54 - 108

59.0



16

5 - 64

72.0



16

64 - 128

85.0



22.5

5 - 80

127



22.5

80 - 155

130



30

5 - 80

153



30

80 - 155

165

More details

    Use Clamp for plates
    Material Body in alloy forged steel
    Standard Individually tested to two times the working load limit
