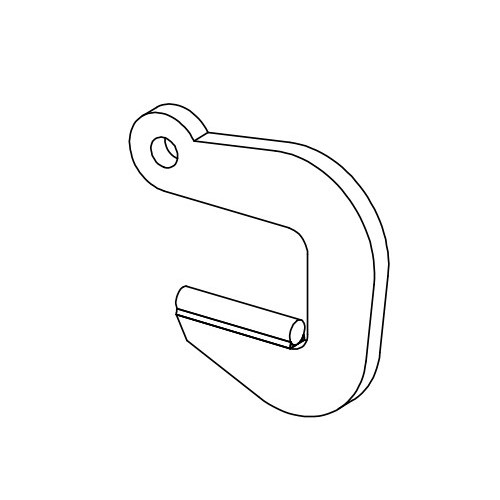

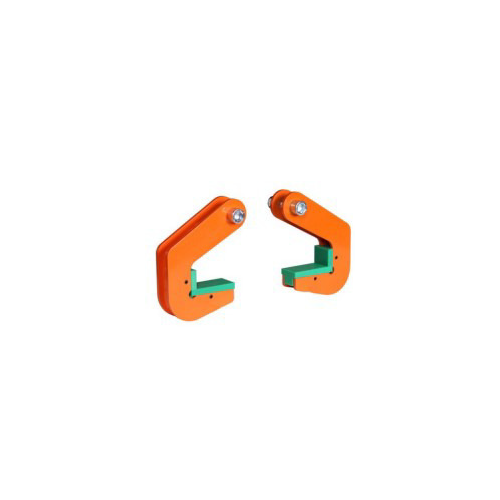

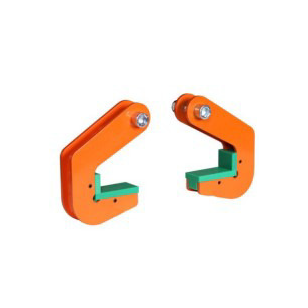

Handling hook for lifting horizontal pipes or tubes
Hook with wide opening and deep slot, rounded bearing part to prevent marking products. TB hooks can be delivered with coating protection (on bearing part & vertical contact surface)
Hooks designed to be used with a 2 legs slings
Code
|
WLL
(t)
|
Opening
(mm)
|
Weight pair
(kg)
|
|
308 722
|
1.5
|
40
|
3.2
|
|
308 723
|
3
|
40
|
3.2
|
|
308 724
|
4
|
50
|
6
|
|
308 725
|
6
|
50
|
6
|
|
308 726
|
8
|
70
|
7.2
|
|
308 727
|
10
|
70
|
10
|
|
308 728
|
12
|
70
|
12
|
|
308 729
|
15
|
70
|
18
|
|
308 730
|
20
|
70
|
20
|
