Clevis shortening hook grade 8

Grade 8 clevis shortening hook for chains

This product can be supplied with a works certificate and/or EC Declaration of Conformity

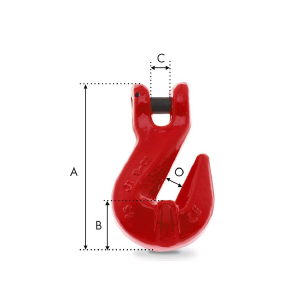

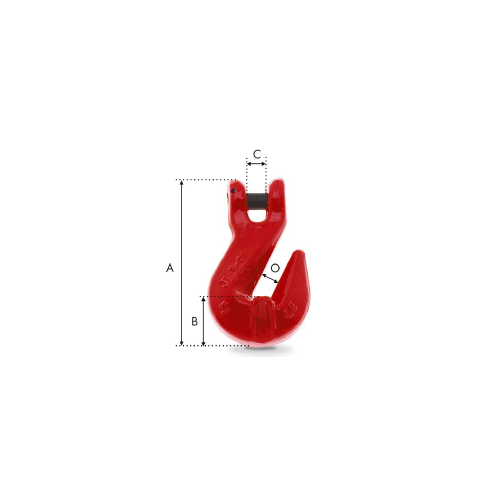

Clevis hook :

Code

WLL
(t)

Chain diam.
(mm)

Weight
(kg)









105 786

1.12

6

0,2

105 787

2.0

7-8

0,5

105 788

3.15

10

0,8

105 789

5.3

13

1,7

105 790

8.0

16

3,1

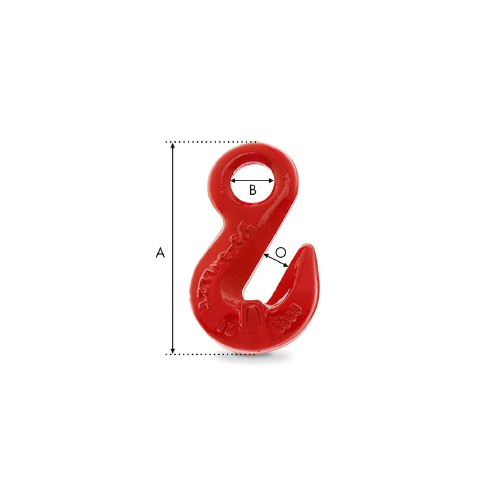

Eye hook :

Code

WLL
(t)

Chain diam.
(mm)

Weight
(kg)

105 778

1.12

6

0,14

105 779

2.0

7-8

0,245

105 780

3.15

10

0,65

105 781

5.3

13

1,39

105 782

8.0

16

2.20

301 854

12.5

20

4.60

302 675

15

22

8.20

305 055

21.2

26

9.80

308 647

31.5

32

19.40

More details

    Attachment Chape et oeil
    Material Acier allié, classe 80, trempé et revenu
    Safety factor 1:4
    Standard Complies with EN 1677-1 standard
